7956-VGG-4-192N | High Performance (Blue Max) Push-Pull Cable, Grooved, 4" Travel, 16' Overall Length
7956-VGG-4-192N | High Performance (Blue Max) Push-Pull Cable, Grooved, 4" Travel, 16' Overall Length
Regular price
$239.40 USD
Regular price
Sale price
$239.40 USD
Unit price
/
per
Couldn't load pickup availability
High Performance Blue Max push pull cables are lubed for life inside a binder wired PTFE core conduit. The outer jacket is resistant to abrasions, gasoline, diesel and chemicals, withstanding temperatures between -65°F — 350°F.. All Parts are stainless steel (Innermember, Conduit Caps, End Rods, Support Tubes, Hex Nuts, Lockwashers and Jam Nuts).
Note: This cable is custom built and cannot be returned for credit or replacement unless there is a defect or the product you received does not match the product description on this page.
For an additional fee this cable can be shortened but not lengthened. Travel, conduit end fittings, duty and type of control cannot be altered.
NOT FOR USE ON AIRCRAFT!
View full details
Note: This cable is custom built and cannot be returned for credit or replacement unless there is a defect or the product you received does not match the product description on this page.
For an additional fee this cable can be shortened but not lengthened. Travel, conduit end fittings, duty and type of control cannot be altered.
NOT FOR USE ON AIRCRAFT!
Construction | High Performance (Blue Max) With All Exposed Fittings/Parts Stainless Steel - both ends |
---|---|
Seal | Model 6 Wiper Seal |
End Rod Thread | 10-32 x 0.89 |
End Fittings | Grooved |
Grooved Dimension (A) | 8.19 |
Travel | 4 |
Push Load Capacity (lbs) | 60 |
Pull Load Capacity (lbs) | 120 |
Minimum Bend Radius | 4 |
Overall Length | 192 (+/- .25) |
All Measurements Are In Inches Unless Otherwise Specified |
Applications | |
---|---|
Marine | Racing |
Shift | Shift |
Throttle | Fuel Shut Off |
Trim | Chute Release |
Throttle | |
Not Intended For Use as Steering Cable |
![Push Pull Grooved High Performance (Blue Max) Cable](http://dcjperformance.com/cdn/shop/products/gg-performance_37d5b82f-380e-4d36-bfc0-cbfe0c94e465.jpg?v=1571499494&width=1445)

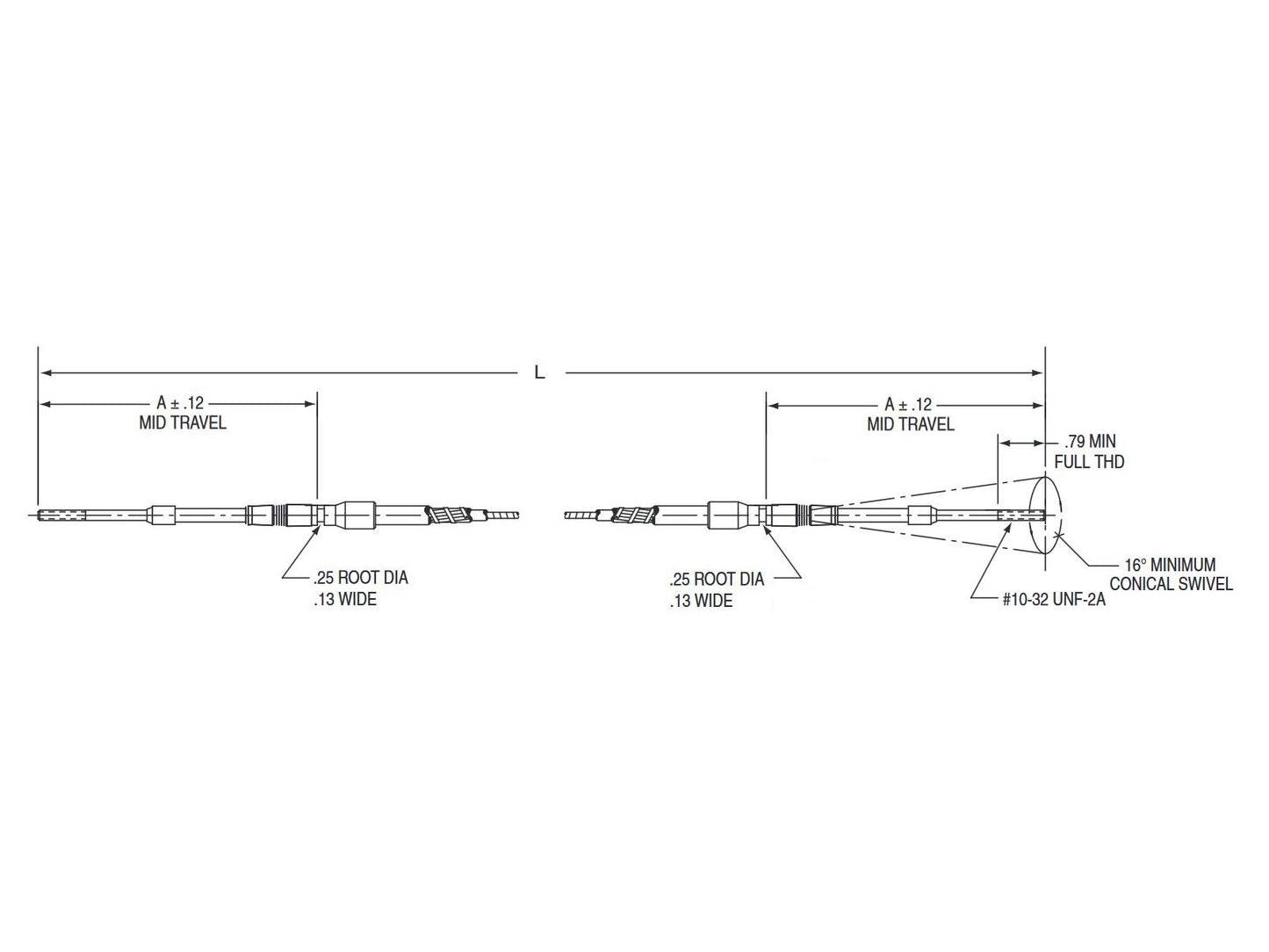

![Push Pull Grooved High Performance (Blue Max) Cable Diagram](http://dcjperformance.com/cdn/shop/products/vld-gg-dia_92485fbf-43d1-40b0-8c2a-a777d2e8d570.jpg?v=1571499494&width=1445)
