3146-MTG-4-24A | Low Friction EXT Push-Pull Cable, Threaded/Grooved, 4" Travel, 2' Overall Length

Low Friction EXT push pull cables are made with tough/durable materials with long lasting seals that keeps them environmentally protected. A binder wire for structural integrity with an added plastic coverd innermember which provides improved efficiency withstanding temperatures between -65°F — 230°F.

Note: This cable is custom built and cannot be returned for credit or replacement unless there is a defect or the product you received does not match the product description on this page.
For an additional fee this cable can be shortened but not lengthened. Travel, conduit end fittings, duty and type of control cannot be altered.

NOT FOR USE ON AIRCRAFT!

---

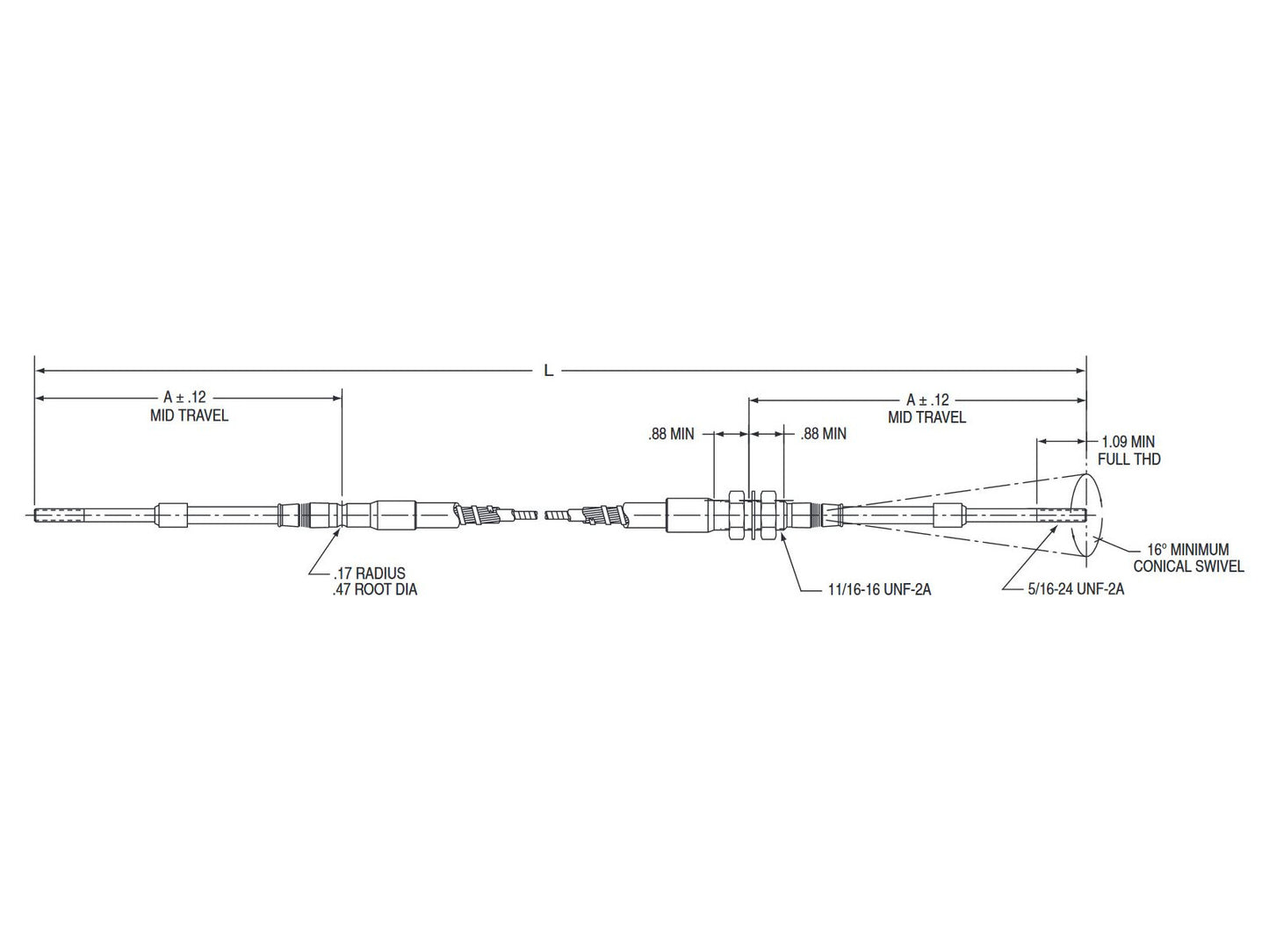

Construction	Low Friction With All Plastic Wear Surfaces, Stainless Steel End Rods And Stainless Steel Swivel Support Tubes
Seal	Model 6 Wiper Seal
End Rod Thread	5/16-24 x 1.19
End Fittings	Threaded/Grooved
End Fitting Thread	11/16-16 x 1.76
Threaded Dimension (A)	9.56
Grooved Dimension (A)	8.87
Travel	4
Push Load Capacity (lbs)	170
Pull Load Capacity (lbs)	400
Minimum Bend Radius	5
Overall Length	24 (+/- .25)
All Measurements Are In Inches Unless Otherwise Specified

Applications
Implement Control
Throttle Control
PTO/4WD Activation
Valve Actuation
Remote Battery Disconnect
Remote Electrical Disconnect
Transmission Shift
Hydrostatic Drives
Latches
Not Intended For Use as Steering Cable
