Cablecraft
314-MTG-5-24AM | Low Friction EXT Push-Pull Cable, Threaded/Grooved, 5" Travel, 2' Overall Length (Metric)
314-MTG-5-24AM | Low Friction EXT Push-Pull Cable, Threaded/Grooved, 5" Travel, 2' Overall Length (Metric)
Regular price
$148.68 USD
Regular price
Sale price
$148.68 USD
Unit price
/
per
Low Friction EXT push pull cables are made with tough/durable materials with long lasting seals that keeps them environmentally protected. A binder wire for structural integrity with an added plastic coverd innermember which provides improved efficiency withstanding temperatures between -65°F — 230°F.
Note: This cable is custom built and cannot be returned for credit or replacement unless there is a defect or the product you received does not match the product description on this page.
For an additional fee this cable can be shortened but not lengthened. Travel, conduit end fittings, duty and type of control cannot be altered.
NOT FOR USE ON AIRCRAFT!
View full details
Note: This cable is custom built and cannot be returned for credit or replacement unless there is a defect or the product you received does not match the product description on this page.
For an additional fee this cable can be shortened but not lengthened. Travel, conduit end fittings, duty and type of control cannot be altered.
NOT FOR USE ON AIRCRAFT!

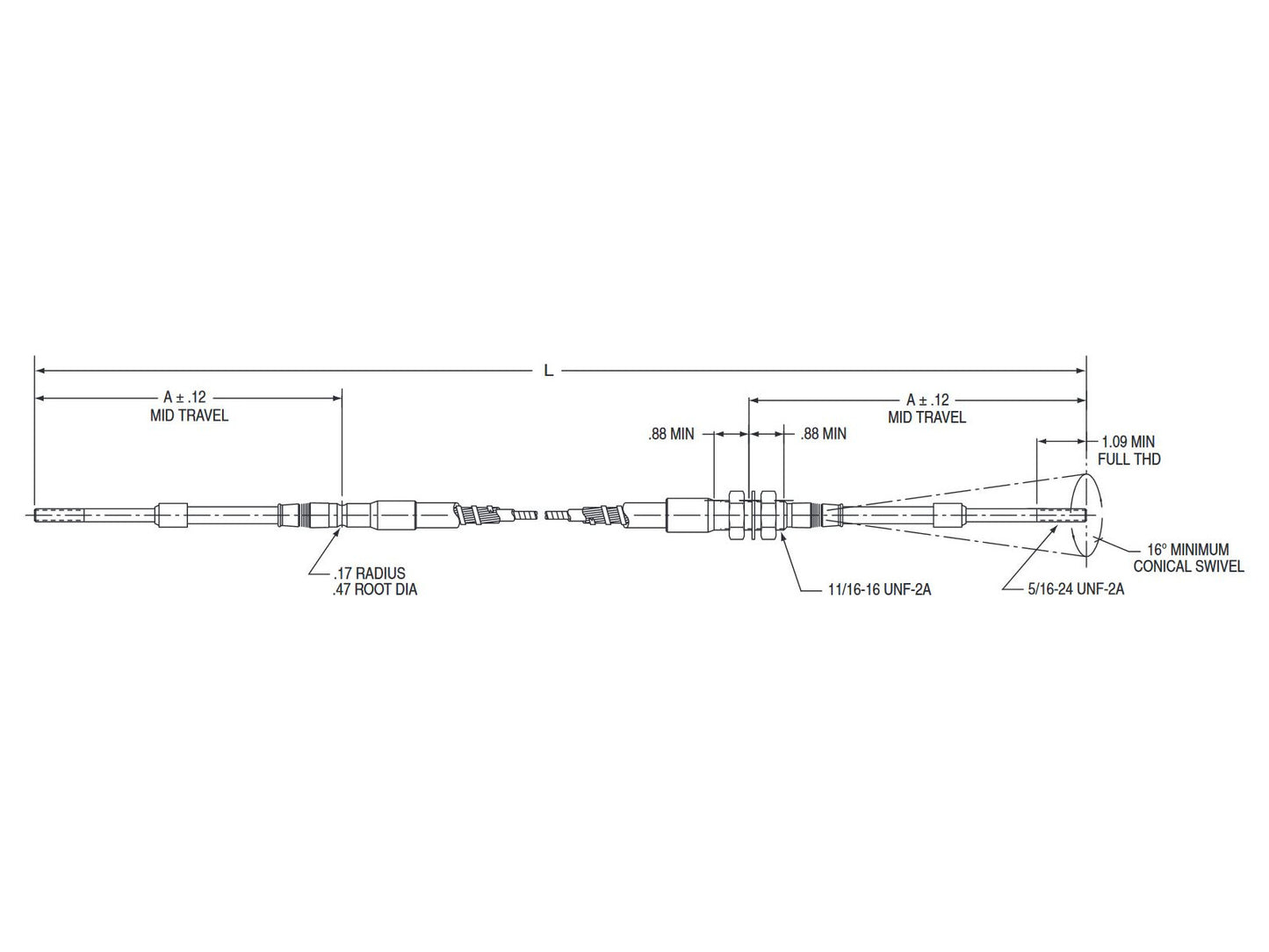

Construction | Low Friction With All Plastic Wear Surfaces, Stainless Steel End Rods And Stainless Steel Swivel Support Tubes |
---|---|
Seal | Model 5 Wiper Seal |
End Rod Thread | M8 X 1.25 |
End Fittings | Threaded/Grooved |
End Fitting Thread | 11/16-16 x 1.76 |
Threaded Dimension (A) | 11.06 |
Grooved Dimension (A) | 10.38 |
Travel | 5 |
Push Load Capacity (lbs) | 130 |
Pull Load Capacity (lbs) | 400 |
Minimum Bend Radius | 5 |
Overall Length | 24 (+/- .25) |
All Measurements Are In Inches Unless Otherwise Specified |
Applications |
---|
Implement Control |
Throttle Control |
PTO/4WD Activation |
Valve Actuation |
Remote Battery Disconnect |
Remote Electrical Disconnect |
Transmission Shift |
Hydrostatic Drives |
Latches |
Not Intended For Use as Steering Cable |
