1736-LTG-4-72A | Utility Push-Pull Cable, Threaded/Grooved, 4" Travel, 6' Overall Length

Utility push pull cables are made with tough/durable materials including binder wire for structural integrity with long lasting seals that keeps them environmentally protected and withstanding temperatures between -65°F — 230°F.

Note: This cable is custom built and cannot be returned for credit or replacement unless there is a defect or the product you received does not match the product description on this page.
For an additional fee this cable can be shortened but not lengthened. Travel, conduit end fittings, duty and type of control cannot be altered.

NOT FOR USE ON AIRCRAFT!

---

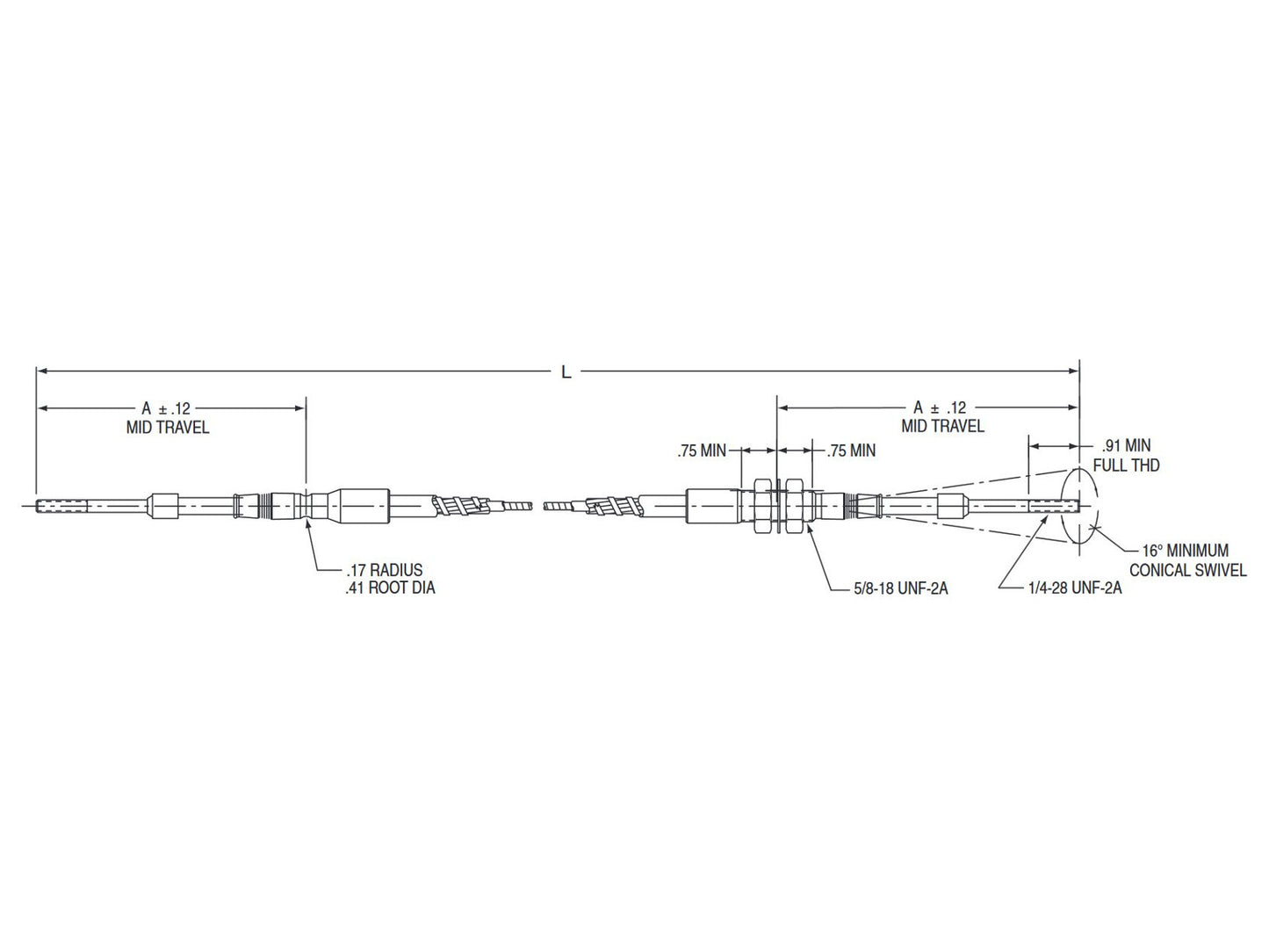

Construction	Utility With Stainless Steel End Rods And Support Tubes
Seal	Model 6 Wiper Seal
End Rod Thread	1/4 28 x 1.00
End Fittings	Threaded/Grooved
End Fitting Thread	5/8-18 x 1.5
Threaded Dimension (A)	9.12
Grooved Dimension (A)	8.5
Travel	4
Push Load Capacity (lbs)	100
Pull Load Capacity (lbs)	230
Minimum Bend Radius	3
Overall Length	72 (+/- .25)
All Measurements Are In Inches Unless Otherwise Specified

Applications
Implement Control
Throttle Control
PTO/4WD Activation
Valve Actuation
Remote Battery Disconnect
Remote Electrical Disconnect
Transmission Shift
Hydrostatic Drives
Latches
Not Intended For Use as Steering Cable
