Cablecraft
173-HTG-3-144AM | Utility Push-Pull Cable, Threaded/Grooved, 3" Travel, 12' Overall Length (Metric)
173-HTG-3-144AM | Utility Push-Pull Cable, Threaded/Grooved, 3" Travel, 12' Overall Length (Metric)
Regular price
$227.52 USD
Regular price
Sale price
$227.52 USD
Unit price
/
per
Couldn't load pickup availability
Utility push pull cables are made with tough/durable materials including binder wire for structural integrity with long lasting seals that keeps them environmentally protected and withstanding temperatures between -65°F — 230°F.
Note: This cable is custom built and cannot be returned for credit or replacement unless there is a defect or the product you received does not match the product description on this page.
For an additional fee this cable can be shortened but not lengthened. Travel, conduit end fittings, duty and type of control cannot be altered.
NOT FOR USE ON AIRCRAFT!
View full details
Note: This cable is custom built and cannot be returned for credit or replacement unless there is a defect or the product you received does not match the product description on this page.
For an additional fee this cable can be shortened but not lengthened. Travel, conduit end fittings, duty and type of control cannot be altered.
NOT FOR USE ON AIRCRAFT!
Construction | Utility With Stainless Steel End Rods And Support Tubes |
---|---|
Seal | Model 5 Wiper Seal |
End Rod Thread | M10 X 1.5 |
End Fittings | Threaded/Grooved |
End Fitting Thread | 7/8-14 x 2 |
Threaded Dimension (A) | 8.69 |
Grooved Dimension (A) | 8.19 |
Travel | 3 |
Push Load Capacity (lbs) | 600 |
Pull Load Capacity (lbs) | 1000 |
Minimum Bend Radius | 6 |
Overall Length | 144 (+/- .25) |
All Measurements Are In Inches Unless Otherwise Specified |
Applications |
---|
Implement Control |
Throttle Control |
PTO/4WD Activation |
Valve Actuation |
Remote Battery Disconnect |
Remote Electrical Disconnect |
Transmission Shift |
Hydrostatic Drives |
Latches |
Not Intended For Use as Steering Cable |

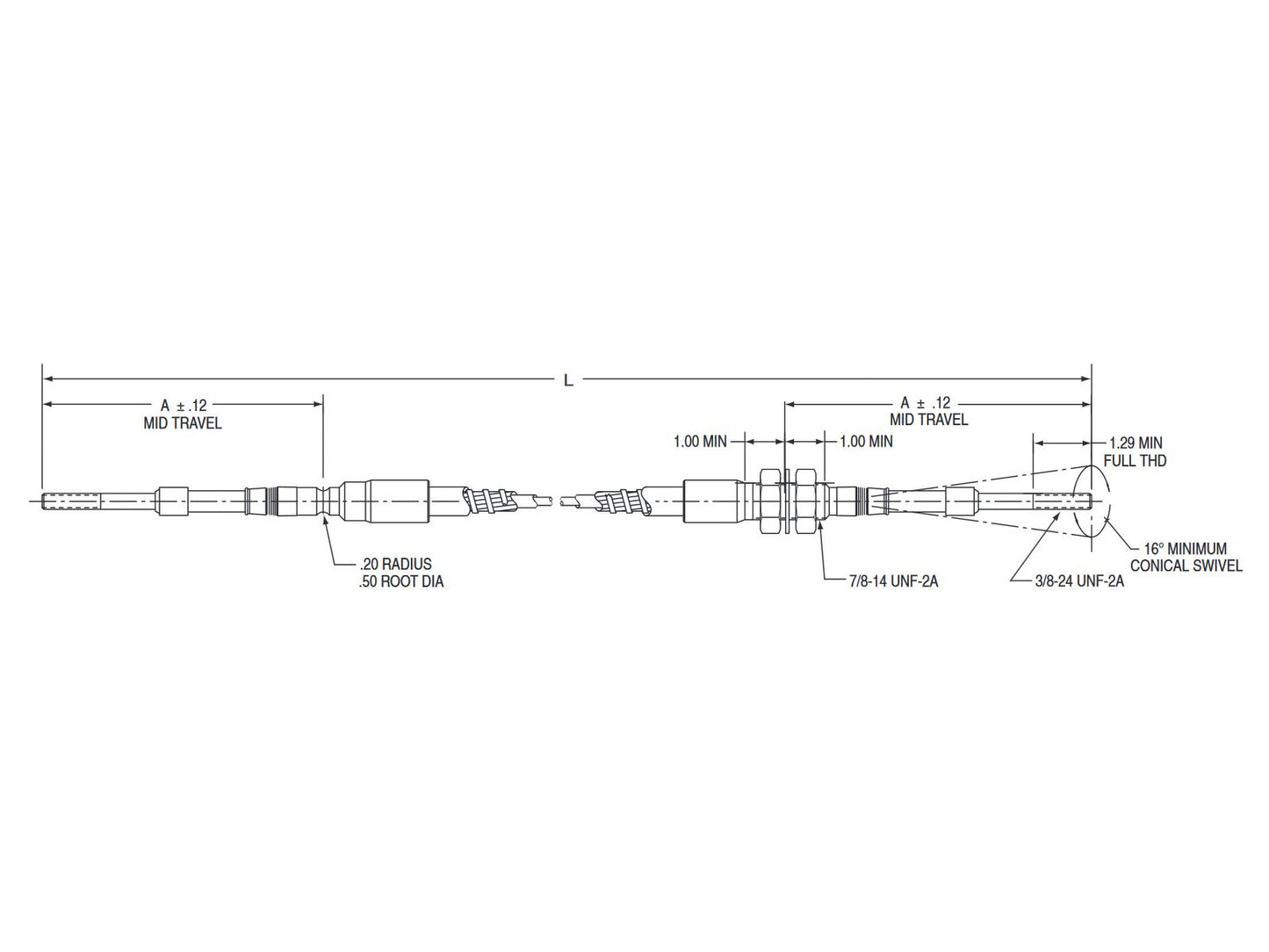

![Push Pull Threaded/Grooved Utility Cable Diagram](http://dcjperformance.com/cdn/shop/products/hd-tg-dia_a04d3ae8-9c3f-4ab6-bee4-43785101fb74.jpg?v=1571498911&width=1445)
