2-28-2907X Spicer 1310 Series Ball Stud Weld Yoke

Spicer 2-28-2907X | (1310) Ball Stud Tube Yoke

Dana

  • $89.14


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series 1310

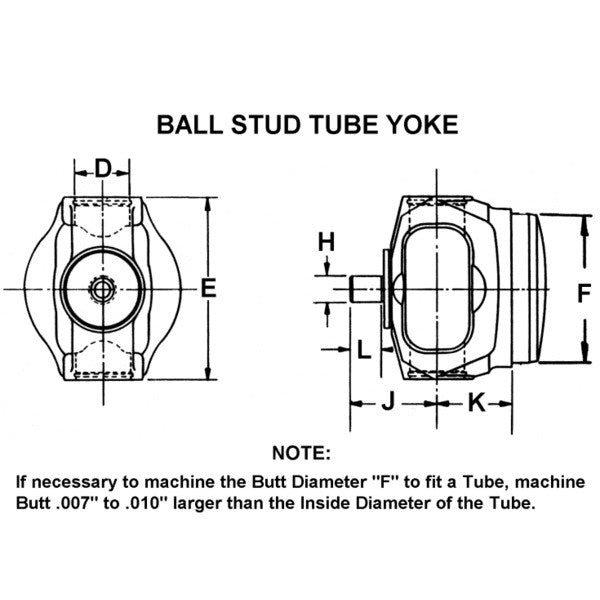

Ball Stud Diameter (In) H 0.500
Ball Stud Length (In) L 0.594
Bearing Cap Diameter (In) D 1.062
Butt Diameter (In) F 2.875
C/L To Ball Stud End (In) J 1.641
C/L To Weld (In) K 1.440
Fits Tube Diameter (In) 3.00
Fits Tube Wall (In) 0.065
Material Steel
Mfg Process Welded
Outside Yoke Dimension (In) E 3.469
Slinger Or Seal Part Number 2-86-418
Package Qty 1
Package Type EACH
Weight 1.38 LB
Country of Origin United States
