Spicer 10-4-193 | (1000) Power Take Off End Yoke


  • $25.23

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
Brand Spicer
Series 1000
C/L To End Hub S 2.500
Hole Diameter (In) P 1.250
Hub Diameter R 2.000
Inside Yoke Dimension (In) K 1.500
Involute Spline N
Joint Angle #1 60
Keyway Location W 9
Material Steel
Sae Keyway Width (In) X 0.312
Set Screw Hole Diameter (In) 0.375
Set Screw Location W 12
Type Straight Round Hole
Yoke Bearing Dimension (In) D 0.938

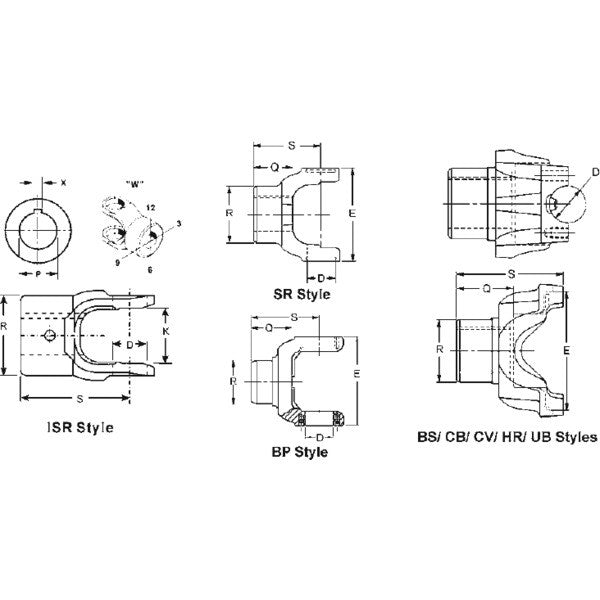

Yoke Style ISR
Package Qty 1
Package Type EACH
Weight 0.39 LB
Country of Origin United States
